VP-BAR-COUNTER-27
Multi-Functional Bar Table for Home Bar, Water Resistant Steel
Precision engineered architectural storage with custom PVD finish options.
VIPHONYA ATELIER BESPOKE

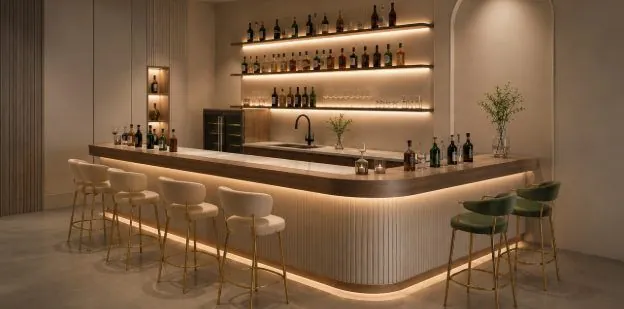

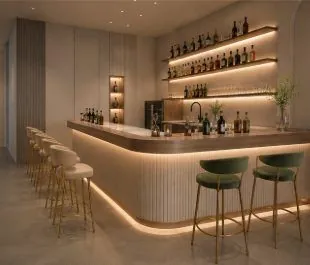

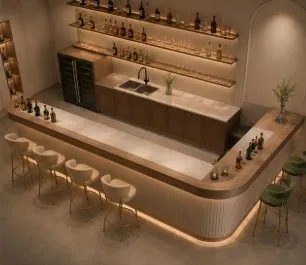

Commercial Stainless Steel Bar Counter Station Custom (RM-026)
L-Shape Foldable Bar Counter for Wine Bar, Water Resistant Steel. Review recorded materials, project scope, procurement inputs and customization confirmation boundaries.
Prime SUS304 / SUS316 Metallurgy
48-Hour CAD · Factory Direct FOB/CIF
36-Month Global Warranty
Technical Specifications
| Model / Code | RM-026 |
|---|---|
| Category | Luxury Bar Counters |
| Primary Metallurgy | SUS304 / SUS316 Prime Stainless Steel (PVD Titanium Coated) |
| Thermal Envelope | Dual/Triple Glazed Argon-Filled Low-E Tempered Glass (45mm Thermal Break) |
| Refrigeration Unit | Embraco Variable-Speed Inverter Compressor · R600a Eco-Refrigerant (≤35 dBA) |
| Microclimate Range | Constant 5°C – 20°C (41°F – 68°F) · 60% – 75% RH Microclimate |
| Customization | Fully Bespoke Sizing, Custom CAD Engineering, Perimeter Lighting & Shelving |
| Quality & Compliance | TÜV Rheinland Factory Audited · 100% Pre-Shipment Inspection · 36-Month Warranty |
Atelier Engineering & Metallurgy
Commercial Bartender Ergonomics & High-Volume Workstation Design
Behind every successful luxury hotel bar or high-energy cocktail lounge lies an ergonomically engineered bar workstation. The RM-026 is developed in collaboration with commercial hospitality operators to minimize unnecessary bartender steps and repetitive strain. The workstation layout positions high-frequency tools within arm’s reach: a centrally located 100-bottle insulated ice well flanked by dual bottle speed rails, recessed blender stations with GFI electrical conduits, and dedicated glass washing dump sinks with integrated perforated drying grids.
Heavy-Duty SUS 304 Metallurgy & Marine-Edge Spill Containment
Commercial bar counters face continuous exposure to acidic citrus juices, high-proof alcohol spills, heavy glassware impacts, and aggressive chemical sanitizers. Low-grade 201 or 430 stainless steel quickly pits, discolors, and rusts under these conditions. VIPHONYA fabricates all work surfaces exclusively from certified prime 1.5mm to 2.0mm SUS 304 stainless steel. The main worktop features a seamless 15mm raised marine anti-drip edge around the entire perimeter, preventing liquid overflow onto finished flooring.
Under-Counter Refrigeration Integration & MEP Chase Plumbing
The RM-026 modular sub-structure is pre-engineered with internal utility chase channels (100mm × 100mm) running longitudinally beneath the work surface. This allows electrical wiring, beverage soda lines, beer python trunk lines, and potable water piping to route cleanly without visible floor clutter. Under-counter bays are precisely dimensioned to accept self-contained back-bar bottle coolers, commercial glass frosters, or custom refrigerated drawer units operating on dedicated 220V/50Hz or 110V/60Hz circuits.
Custom Architectural Dimensional Sizing & Front Elevation Finishes
• Standard Worktop Depth: 650mm to 800mm (customizable to fit narrow architectural footprints). • Working Height: 850mm to 920mm ergonomically optimized for commercial bar stools and standing staff. • Front Bar Facings: Structural stainless steel mounting framework ready to accept client-supplied marble, fluted timber, back-lit translucent onyx, or VIPHONYA laser-cut PVD decorative metal screens. • Sinks & Plumbing: NSF-compliant seamless deep-drawn stainless steel sink bowls with commercial gooseneck faucets and removable basket strainers.
Factory Pre-Assembly & Export Packaging Standards
To ensure zero on-site welding or fitting issues, every custom RM-026 bar station undergoes complete factory trial assembly in our 6,600 m² Foshan facility. Water drainage lines are pressure-tested and sectional interlocking joints are verified prior to dismantling into modular crated sections. All components are wrapped in heavy polyethylene film, pearl cotton edge guards, and crated in heavy-duty 18mm ISPM-15 plywood crates for secure worldwide ocean shipment.
DIRECT PROJECT INQUIRY
Inquire for Model RM-026
Connect directly with Kenny and our Foshan engineering team. Submit your architectural requirements, room dimensions, or customization preferences to receive shop drawings and a turnkey B2B quotation.
