VP-CIGAR-STORAGE-35
VIPHONYA Stainless Steel Cigar Cabinet Dual Zone, Household
Precision engineered architectural storage with custom PVD finish options.
VIPHONYA ATELIER BESPOKE

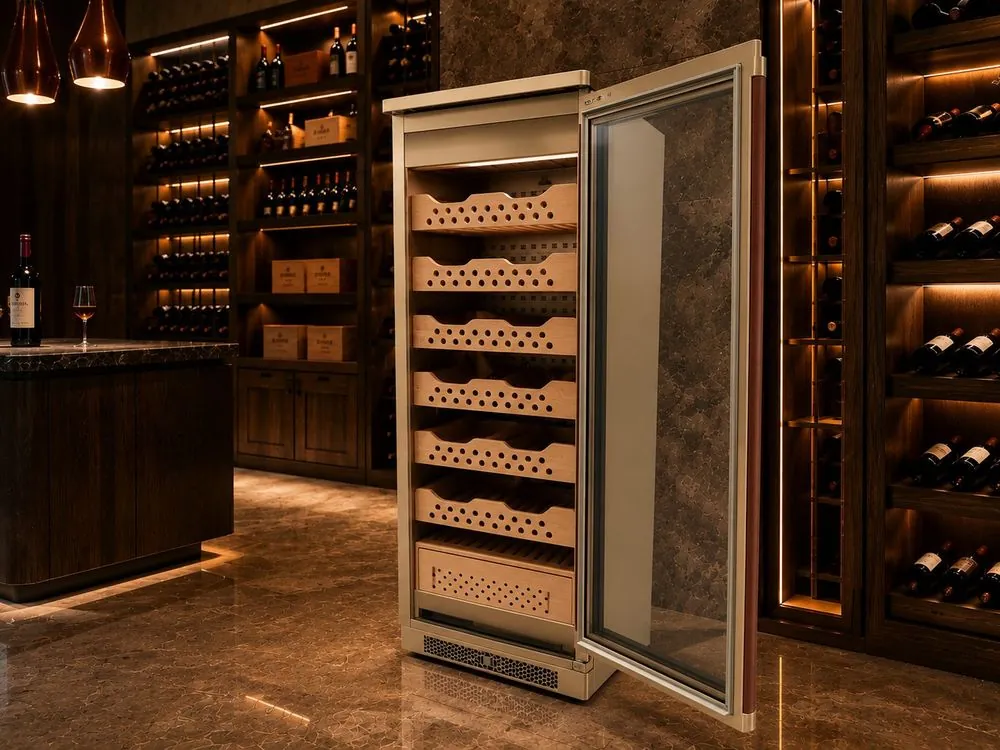

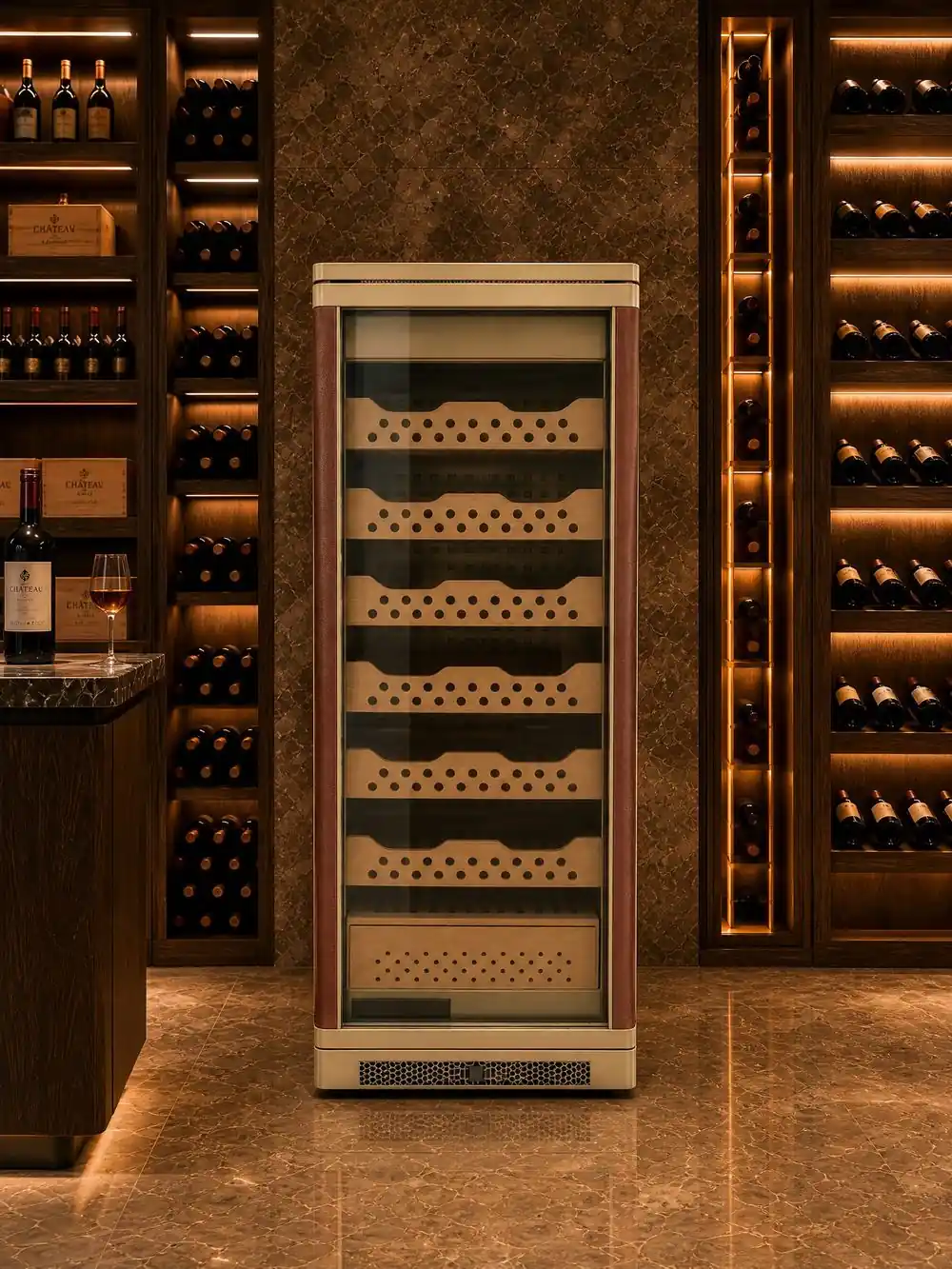

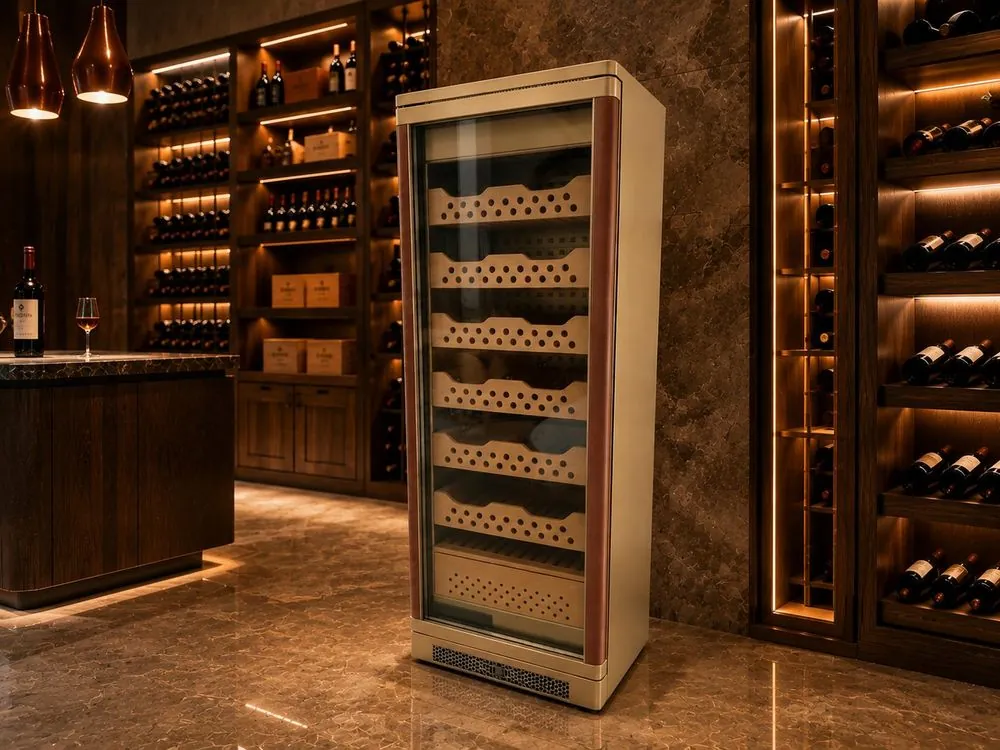

Electric Stainless Steel Cigar Humidor Cabinet Wholesale (RM-034)
VIPHONYA Electric Stainless Steel Cigar Cabinet 448L, Dual Zone. Review recorded materials, project scope, procurement inputs and customization confirmation boundaries.
Prime SUS304 / SUS316 Metallurgy
48-Hour CAD · Factory Direct FOB/CIF
36-Month Global Warranty
Technical Specifications
| Model / Code | RM-034 |
|---|---|
| Category | Precision Cigar Humidors |
| Primary Metallurgy | SUS304 / SUS316 Prime Stainless Steel (PVD Titanium Coated) |
| Thermal Envelope | Dual/Triple Glazed Argon-Filled Low-E Tempered Glass (45mm Thermal Break) |
| Refrigeration Unit | Embraco Variable-Speed Inverter Compressor · R600a Eco-Refrigerant (≤35 dBA) |
| Microclimate Range | Constant 5°C – 20°C (41°F – 68°F) · 60% – 75% RH Microclimate |
| Customization | Fully Bespoke Sizing, Custom CAD Engineering, Perimeter Lighting & Shelving |
| Quality & Compliance | TÜV Rheinland Factory Audited · 100% Pre-Shipment Inspection · 36-Month Warranty |
Atelier Engineering & Metallurgy
Precision Microclimate Regulation & Ultrasonic Humidification Architecture
Fine handmade cigars require precise environmental equilibrium—commonly governed by the 70/70 rule (70°F / 21°C and 70% relative humidity). In commercial cigar lounges and luxury hospitality suites, standard domestic humidors fail due to frequent door openings and inadequate moisture recovery. The RM-034 integrates commercial-grade ultrasonic atomization humidification coupled with PTC heating elements and variable-speed inverter cooling. The internal circulation blower distributes microscopic water vapor particles (1–5 microns) evenly across all shelving tiers without wetting tobacco wrappers, holding relative humidity within tight ±2% RH tolerances.

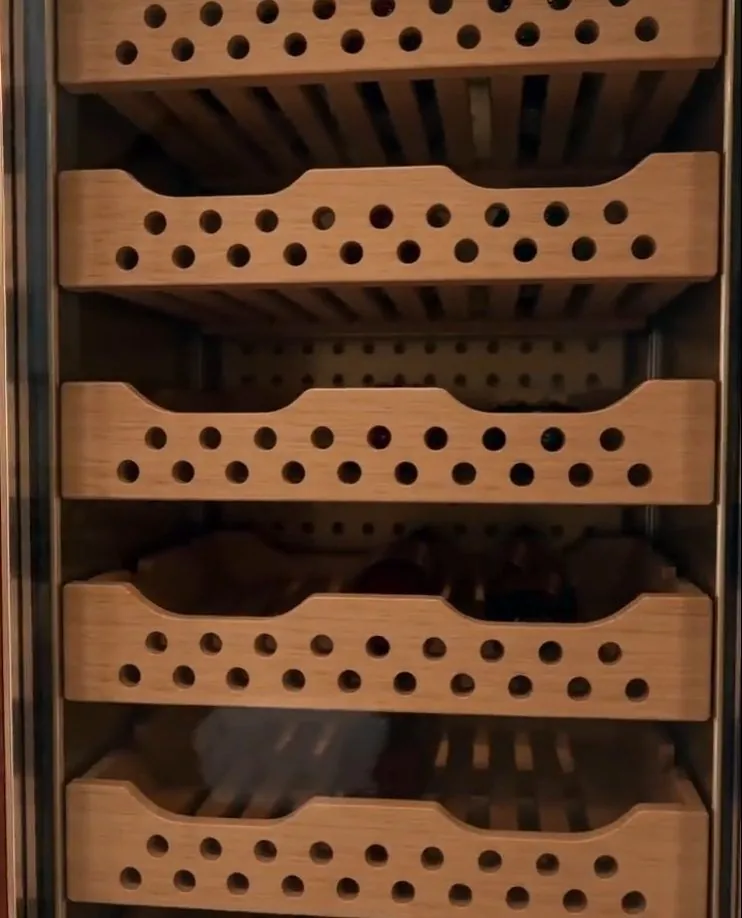

Spanish Cedar (Cedrela Odorata) Interior Racking & Aerodynamic Slotted Drawers
Unlike inferior cedar substitutes, all interior drawers, dividers, and shelf slats in the RM-034 are milled exclusively from authentic kiln-dried Spanish cedar (Cedrela odorata). Spanish cedar possesses unique cellular properties: it absorbs excess moisture during humid periods and gently releases humidity during dry cycles. Furthermore, natural cedar oils deter tobacco beetles (Lasioderma serricorne) while enhancing the natural aging bouquet of premium cigars. Drawer bottoms feature precision CNC-milled convective ventilation slots, enabling unrestricted 360-degree airflow around boxed and single loose sticks.
Structural Metallurgy, Thermal Insulation & Acoustic Engineering
The exterior chassis is fabricated from 1.2mm to 1.5mm prime SUS 304 stainless steel with seamless TIG-welded corner miters and fine hairline brushed or PVD titanium finish options (Champagne Gold, Rose Gold, Matte Black). Cabinet walls are injected with 45mm high-density cyclopentane polyurethane foam, providing an impervious thermal barrier. Operating with a low-vibration inverter compressor operating at ≤35 dBA, the cabinet maintains complete acoustic serenity in private executive tasting rooms.
Commercial Specifications, Electrical Submittals & Custom Dimensions
• Nominal Capacity: 448 Liters (accommodating approximately 1,500 to 2,500 loose cigars or 80–120 standard boxes). • Temperature Range: 16°C to 22°C (61°F to 72°F) digital adjustment. • Humidity Range: 60% to 75% RH digital adjustment with auto-refill distilled water reservoir. • Electrical Requirements: 220V/50Hz or 110V/60Hz, 150W running power with internal LED illumination (3000K warm white, zero UV emission).
Export Packaging, Factory Inspection & Turnkey B2B Procurement
Every RM-034 humidor cabinet undergoes rigorous 48-hour continuous thermal and humidity holding tests in our 6,600 m² Foshan manufacturing facility prior to dispatch. Units are packaged in 5-layer heavy-duty export crating (protective surface film + pearl cotton corner guards + 40mm EPS foam + waterproof barrier wrap + 18mm ISPM-15 compliant plywood crates) ensuring zero damage during ocean freight to worldwide destinations.
DIRECT PROJECT INQUIRY
Inquire for Model RM-034
Connect directly with Kenny and our Foshan engineering team. Submit your architectural requirements, room dimensions, or customization preferences to receive shop drawings and a turnkey B2B quotation.
